RFID实训|13.56M读卡电路搭建和程序实训

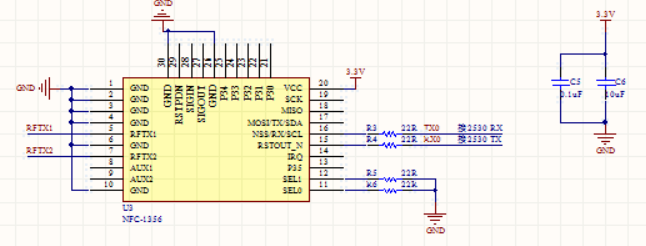

电路搭建
程序实现
#include "OSAL.h"
#include "AF.h"
#include "ZDApp.h"
#include "ZDObject.h"
#include "ZDProfile.h"
#include "GenericApp.h"
#include "DebugTrace.h"
#if !defined( WIN32 )
#include "OnBoard.h"
#endif
/* HAL */
#include "hal_oled_chinese.h"
// This list should be filled with Application specific Cluster IDs.
const cId_t GenericApp_ClusterList[GENERICAPP_MAX_CLUSTERS] =
{
GENERICAPP_CLUSTERID
};
const SimpleDescriptionFormat_t GenericApp_SimpleDesc =
{
GENERICAPP_ENDPOINT, // int Endpoint;
GENERICAPP_PROFID, // uint16 AppProfId[2];
GENERICAPP_DEVICEID, // uint16 AppDeviceId[2];
GENERICAPP_DEVICE_VERSION, // int AppDevVer:4;
GENERICAPP_FLAGS, // int AppFlags:4;
GENERICAPP_MAX_CLUSTERS, // byte AppNumInClusters;
(cId_t *)GenericApp_ClusterList, // byte *pAppInClusterList;
GENERICAPP_MAX_CLUSTERS, // byte AppNumInClusters;
(cId_t *)GenericApp_ClusterList // byte *pAppInClusterList;
};
RfPacket_t RfTx,RfRx;
uint8 *IeeeAddr;//物理地址
// This is the Endpoint/Interface description. It is defined here, but
// filled-in in GenericApp_Init(). Another way to go would be to fill
// in the structure here and make it a "const" (in code space). The
// way it's defined in this sample app it is define in RAM.
endPointDesc_t GenericApp_epDesc;
uint8 Str1[16],Str2[16],BlockData[16];
uint8 NfcWakeup[24]={0x55,0x55,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x03,0xFD,0xD4,0x14,0x01,0x17,0x00};
uint8 NfcDetect[11]={0x00,0x00,0xFF,0x04,0xFC,0xD4,0x4A,0x01,0x00,0xE1,0x00};//配置 106 kbps type A (ISO/IEC14443 Type A)
uint8 NfcVerifyKeyA[22]={0x00,0x00,0xFF,0x0F,0xF1,0xD4,0x40,0x01,0x60,0x03,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x94,0x8A,0x3B,0x0B,0x2A,0x00};//密码授权，验证KeyA
uint8 NfcReadBlock[12]={0x00,0x00,0xFF,0x05,0xFB,0xD4,0x40,0x01,0x30,0x02,0xB9,0x00};//默认 读 02区的16个字节
uint8 NfcWriteBlock[28]={0x00,0x00,0xFF,0x15,0xEB,0xD4,0x40,0x01,0xA0,0x02,0xff,0xff,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0x0A,0x0B,0x0C,0x0D,0x0E,0x0F,0xD1,0x00};//默认往 02区写 16个字节的第一个字节
uint16 Dht11Value;
enum
{
NFC_ACK = 0,
NFC_WAKEUP,
NFC_DETECT,
NFC_VARIFY,
NFC_READ,
NFC_WRITE
};
char* StrNfc[]={"NFCCMD","WAKEUP","DETECT","VERIFY","READ","WRITE"};
uint16 ShortAddr=0;
#define RX_DUMP 6
u8 RxBuffer1[MT_UART_RX_BUFF_MAX];
u8 flag_nfc_status;
u8 flag_rev_finish=0; //1为接收完成
u8 flag_rev_count=0; //通讯次数
u8 flag_rev_cmd=0; //通讯的命令
u8 UID[4]; //存储 UID
u8 UID_backup[4]; //UID备份 用于处理 不连续写同一卡
u8 tmp;
uint8 SensorId;
uint16 Dht11Value;
byte GenericApp_TaskID; // Task ID for internal task/event processing
devStates_t GenericApp_NwkState;
byte GenericApp_TransID; // This is the unique message ID (counter)
afAddrType_t GenericApp_DstAddr;
static void GenericApp_ProcessZDOMsgs( zdoIncomingMsg_t *inMsg );
static void GenericApp_HandleKeys( byte shift, byte keys );
static void GenericApp_MessageMSGCB( afIncomingMSGPacket_t *pckt );
static void GenericApp_SendTheMessage( void );
#if defined( IAR_ARMCM3_LM )
static void GenericApp_ProcessRtosMessage( void );
#endif
void GenericApp_Init( uint8 task_id )
{
GenericApp_TaskID = task_id;
GenericApp_NwkState = DEV_INIT;
GenericApp_TransID = 0;
// Device hardware initialization can be added here or in main() (Zmain.c).
// If the hardware is application specific - add it here.
// If the hardware is other parts of the device add it in main().
halUARTCfg_t uartConfig; //定义个串口结构体
uartConfig.configured = TRUE; //串口配置为真
uartConfig.baudRate = HAL_UART_BR_115200;
//波特率为9600
uartConfig.flowControl = FALSE; //流控制为假
HalUARTOpen(HAL_UART_PORT_0,&uartConfig);
init_buzzer();
init_key();
//初始化oled显示屏
oled_initial();
oled_disp_string(1,1,"武汉唯众智创科技");
oled_disp_string(3,1,"有限公司");
Delay_ms(1000);
SensorId = 13;
GenericApp_DstAddr.addrMode = (afAddrMode_t)Addr16Bit;//单播
GenericApp_DstAddr.endPoint = GENERICAPP_ENDPOINT;
GenericApp_DstAddr.addr.shortAddr = 0x0000;//向协调器单播
// Fill out the endpoint description.
GenericApp_epDesc.endPoint = GENERICAPP_ENDPOINT;
GenericApp_epDesc.task_id = &GenericApp_TaskID;
GenericApp_epDesc.simpleDesc
= (SimpleDescriptionFormat_t *)&GenericApp_SimpleDesc;
GenericApp_epDesc.latencyReq = noLatencyReqs;
// Register the endpoint description with the AF
afRegister( &GenericApp_epDesc );
// Register for all key events - This app will handle all key events
RegisterForKeys( GenericApp_TaskID );
// Update the display
#if defined ( LCD_SUPPORTED )
HalLcdWriteString( "GenericApp", HAL_LCD_LINE_1 );
#endif
ZDO_RegisterForZDOMsg( GenericApp_TaskID, End_Device_Bind_rsp );
ZDO_RegisterForZDOMsg( GenericApp_TaskID, Match_Desc_rsp );
#if defined( IAR_ARMCM3_LM )
// Register this task with RTOS task initiator
RTOS_RegisterApp( task_id, GENERICAPP_RTOS_MSG_EVT );
#endif
sprintf(Str1,"ZID:%2d SID:%2d",GENERICAPP_ENDPOINT,SensorId);
oled_clear_screen();
oled_disp_string(1,1,Str1);
}
void CleanBuffer(u16 num,u8 ch)//清零 前 多少个字节的数据
{
u16 i=0;
for(i=0;i<num;i++)
RxBuffer1[i]=ch;
}
u8 NfcReceiveAck(void)
{
CleanBuffer(RX_DUMP,0);
if(6==HalUARTRead(0,RxBuffer1,RX_DUMP)){
if(RxBuffer1[0]==0x00&&RxBuffer1[1]==0x00&&RxBuffer1[2]==0xFF&&
RxBuffer1[3]==0x00&&RxBuffer1[4]==0xFF&&RxBuffer1[5]==0x00){
return 0;
}
}
HalUARTRead(0,RxBuffer1,sizeof(RxBuffer1));
return 1;
}
void NfcReceive(uint8 imLen,uint8 imCmd)
{
uchar readLen=0;
u8 i;
u8 CheckCode=0; //数据校验码
u8 temp=0;
CleanBuffer(sizeof(RxBuffer1),'*');
readLen = HalUARTRead(0,RxBuffer1,imLen);
if(readLen==imLen){
for(i=11-RX_DUMP;i<imLen-2;i++){
temp+=RxBuffer1[i];
}
CheckCode=0x100-temp;
if(CheckCode!=RxBuffer1[imLen-2]){
//PC->PN532:
// 00 00 FF 0F F1 D4 40 01 60 03 FF FF FF FF FF FF D5 42 76 48 B9 0
//PN532->PC:应答(间距5ms)
// 00 00 FF 00 FF 00
//PN532->PC:回复
//00 00 FF 03 FD D5 41 00 EA 00
flag_rev_finish = 0;
}else switch(imCmd){
case NFC_WAKEUP:
flag_rev_finish|=(1<<imCmd); //接收完毕,激活成功
break;
case NFC_DETECT:
UID[0]=RxBuffer1[19-RX_DUMP];
UID[1]=RxBuffer1[20-RX_DUMP];
UID[2]=RxBuffer1[21-RX_DUMP];
UID[3]=RxBuffer1[22-RX_DUMP];
flag_rev_finish|=(1<<imCmd);
break;
case NFC_VARIFY:
flag_rev_finish|=(1<<imCmd);
break;
case NFC_READ:
for(i=0;i<16;i++)BlockData[i]=RxBuffer1[i+14-RX_DUMP];
flag_rev_finish|=(1<<imCmd);
break;
case NFC_WRITE:
flag_rev_finish|=(1<<imCmd);
break;
default:
flag_rev_finish = 0;
break;
}
}else{
Delay_ms(1);
flag_rev_finish = 0;
}
}
uint8 NfcSend(uint8 cmd)
{
uint8 temp=0,i,recLen=0;
flag_rev_finish = 0;
if(cmd == NFC_WAKEUP){
recLen = 15;
HalUARTWrite(0,NfcWakeup,sizeof(NfcWakeup));
}
if(cmd == NFC_DETECT){
recLen = 25;
HalUARTWrite(0,NfcDetect,sizeof(NfcDetect));
}
if(cmd == NFC_VARIFY){
NfcVerifyKeyA[16]=UID[0];
NfcVerifyKeyA[17]=UID[1];
NfcVerifyKeyA[18]=UID[2];
NfcVerifyKeyA[19]=UID[3];
for(i=5;i<20;i++){
temp+=NfcVerifyKeyA[i];
}
NfcVerifyKeyA[20]=0x100-temp; //数据 校验 0x100-
NfcVerifyKeyA[21]=0x00;
recLen = 16;
HalUARTWrite(0,NfcVerifyKeyA,sizeof(NfcVerifyKeyA));
}
if(cmd == NFC_READ){
recLen = 32;
HalUARTWrite(0,NfcReadBlock,sizeof(NfcReadBlock));
}
if(cmd == NFC_WRITE){
recLen = 16;
for(i=5;i<26;i++){
temp+=NfcWriteBlock[i];
}
NfcWriteBlock[26]=0x100-temp; //数据 校验码
NfcWriteBlock[27]=0x00;
HalUARTWrite(0,NfcWriteBlock,sizeof(NfcWriteBlock));
}
if(0!=NfcReceiveAck()){ //应答不成功
return 2;
}
NfcReceive(recLen-RX_DUMP,cmd);
oled_clear_vertical(2);
if(flag_rev_finish&(1<<cmd)){
LED1 = 1;
if(cmd == NFC_WAKEUP){
sprintf(Str2,"%s success!",StrNfc[cmd]);
}
if(cmd == NFC_DETECT){
sprintf(Str2,"ID:%x %x %x %x",UID[0],UID[1],UID[2],UID[3]);
}
if(cmd == NFC_VARIFY){ //keyA验证成功,接下来可以进行读写
sprintf(Str2,"%s success!",StrNfc[cmd]);
}
if(cmd == NFC_READ){
//fg_BytesToString(16,BlockData,16);
RfTx.Pack.Sid[0] = 13;
RfTx.Pack.Len=16;
for(i=0;i<16;i++)
{
RfTx.Pack.Data[i]=BlockData[i];
}
GenericApp_SendTheMessage();
//free(ptr);
}
if(cmd == NFC_WRITE){
sprintf(Str2,"%s success!",StrNfc[cmd]);
}
oled_disp_string(3,1,Str2);
return 0;
}
LED1 = 0;
if(cmd == NFC_WAKEUP){
sprintf(Str2,"%s repeat!",StrNfc[cmd]);
}else if(cmd == NFC_DETECT){
sprintf(Str2,"%s no card!",StrNfc[cmd]);
}else if(cmd == NFC_VARIFY){
//sprintf(Str2,"%s failed!",StrNfc[cmd]);
}else if(cmd == NFC_READ){
//sprintf(Str2,"%s failed!",StrNfc[cmd]);
}else if(cmd == NFC_WRITE){
//sprintf(Str2,"%s failed!",StrNfc[cmd]);
}
oled_disp_string(3,1,Str2);
return 1;
}
uint16 GenericApp_ProcessEvent( uint8 task_id, uint16 events )
{
afIncomingMSGPacket_t *MSGpkt;
afDataConfirm_t *afDataConfirm;
uint16 srcSaddr;
// Data Confirmation message fields
byte sentEP;
ZStatus_t sentStatus;
byte sentTransID; // This should match the value sent
(void)task_id; // Intentionally unreferenced parameter
if ( events & SYS_EVENT_MSG )
{
MSGpkt = (afIncomingMSGPacket_t *)osal_msg_receive( GenericApp_TaskID );
while ( MSGpkt )
{
switch ( MSGpkt->hdr.event )
{
case ZDO_CB_MSG:
GenericApp_ProcessZDOMsgs( (zdoIncomingMsg_t *)MSGpkt );
break;
case AF_DATA_CONFIRM_CMD:
// This message is received as a confirmation of a data packet sent.
// The status is of ZStatus_t type [defined in ZComDef.h]
// The message fields are defined in AF.h
afDataConfirm = (afDataConfirm_t *)MSGpkt;
sentEP = afDataConfirm->endpoint;
sentStatus = afDataConfirm->hdr.status;
sentTransID = afDataConfirm->transID;
(void)sentEP;
(void)sentTransID;
// Action taken when confirmation is received.
if ( sentStatus != ZSuccess )
{
// The data wasn't delivered -- Do something
}
break;
case AF_INCOMING_MSG_CMD:
GenericApp_MessageMSGCB( MSGpkt );
break;
case ZDO_STATE_CHANGE:
GenericApp_NwkState = (devStates_t)(MSGpkt->hdr.status);
if ( (GenericApp_NwkState == DEV_ZB_COORD)
|| (GenericApp_NwkState == DEV_ROUTER)
|| (GenericApp_NwkState == DEV_END_DEVICE) )
{
// Start sending "the" message in a regular interval.
memset(RfTx.Buf,'x',sizeof(RfPacket_t));
RfTx.Pack.Head = '#';
IeeeAddr = NLME_GetExtAddr();
memcpy(RfTx.Pack.Laddr,IeeeAddr,8); //8个字节 本设备IEEE地址
srcSaddr = NLME_GetShortAddr(); //2个字节 本设备网络地址
RfTx.Pack.Saddr[0] = srcSaddr;
RfTx.Pack.Saddr[1] = srcSaddr>>8;
RfTx.Pack.Tail = '$';
osal_start_timerEx( GenericApp_TaskID,
GENERICAPP_SEND_WAKEUP_EVT,
500 );
}
break;
default:
break;
}
// Release the memory
osal_msg_deallocate( (uint8 *)MSGpkt );
// Next
MSGpkt = (afIncomingMSGPacket_t *)osal_msg_receive( GenericApp_TaskID );
}
// return unprocessed events
return (events ^ SYS_EVENT_MSG);
}
if(events & GENERICAPP_SEND_WAKEUP_EVT){
if(NfcSend(NFC_WAKEUP)!=0){
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_WAKEUP_EVT,500);
}else{
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_WAKEUP_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT,500);
}
return (events ^ GENERICAPP_SEND_WAKEUP_EVT);
}
if(events & GENERICAPP_SEND_DETECT_EVT){
if(NfcSend(NFC_DETECT)!=0){
RfTx.Pack.Sid[0]=0;
GenericApp_SendTheMessage();
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT,500);
}else{
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_VARIFY_EVT,500);
}
return (events ^ GENERICAPP_SEND_DETECT_EVT);
}
if(events & GENERICAPP_SEND_VARIFY_EVT){
if(NfcSend(NFC_VARIFY)==0){
tmp=0;
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_VARIFY_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_READ_EVT,500);
}else{
tmp+=1;
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_VARIFY_EVT,500);
}
if(tmp>3){
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_VARIFY_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT,500);
}
return (events ^ GENERICAPP_SEND_VARIFY_EVT);
}
if(events & GENERICAPP_SEND_READ_EVT){
if(NfcSend(NFC_READ)==0){
tmp=0;
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_READ_EVT,500);
}else{
tmp+=1;
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_READ_EVT,500);
}
if(tmp>3){
tmp=0;
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_READ_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT,500);
}
return (events ^ GENERICAPP_SEND_READ_EVT);
}
if(events & GENERICAPP_SEND_WRITE_EVT){
if(NfcSend(NFC_WRITE)==0){
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_WRITE_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_DETECT_EVT,500);
}else{
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_WRITE_EVT,500);
}
return (events ^ GENERICAPP_SEND_WRITE_EVT);
}
return 0;
}
static void GenericApp_ProcessZDOMsgs( zdoIncomingMsg_t *inMsg )
{
switch ( inMsg->clusterID )
{
case End_Device_Bind_rsp:
if ( ZDO_ParseBindRsp( inMsg ) == ZSuccess )
{
// Light LED
HalLedSet( HAL_LED_4, HAL_LED_MODE_ON );
}
#if defined( BLINK_LEDS )
else
{
// Flash LED to show failure
HalLedSet ( HAL_LED_4, HAL_LED_MODE_FLASH );
}
#endif
break;
case Match_Desc_rsp:
{
ZDO_ActiveEndpointRsp_t *pRsp = ZDO_ParseEPListRsp( inMsg );
if ( pRsp )
{
if ( pRsp->status == ZSuccess && pRsp->cnt )
{
GenericApp_DstAddr.addrMode = (afAddrMode_t)Addr16Bit;
GenericApp_DstAddr.addr.shortAddr = pRsp->nwkAddr;
// Take the first endpoint, Can be changed to search through endpoints
GenericApp_DstAddr.endPoint = pRsp->epList[0];
// Light LED
HalLedSet( HAL_LED_4, HAL_LED_MODE_ON );
}
osal_mem_free( pRsp );
}
}
break;
}
}
void InitIrCmd(uchar* ieBuf,uchar d0,uchar d1,uchar d2,uchar d3)
{
ieBuf[0] = d0;
ieBuf[1] = d1;
ieBuf[2] = d2;
ieBuf[3] = d3;
ieBuf[4] = d0^d1^d2^d3;
}
static void GenericApp_MessageMSGCB( afIncomingMSGPacket_t *pkt ) {
RfPacket_t rf;
u8 i;
switch ( pkt->clusterId )
{
case GENERICAPP_CLUSTERID:
osal_memcpy(rf.Buf,pkt->cmd.Data,sizeof(RfPacket_t));
if(rf.Pack.Head=='#'&&rf.Pack.Tail=='$')
{
if(rf.Pack.Sid[0] == 13)
{
for(i=0;i<16;i++)
{
NfcWriteBlock[10+i]=rf.Pack.Data[i];
}
osal_stop_timerEx( GenericApp_TaskID,GENERICAPP_SEND_READ_EVT);
osal_start_timerEx( GenericApp_TaskID,GENERICAPP_SEND_WRITE_EVT,500);
}
break;
}
}
}
static void GenericApp_SendTheMessage( void )
{
SENSOR_FUNC func;
uint8 temp=0;
char charbuf[15] = "KeyName:";
uint8* ptr = NULL;
RfTx.Pack.Sid[1] = ' ';
RfTx.Pack.Cmd[0] = 'B';
RfTx.Pack.Cmd[1] = 'R';
if ( AF_DataRequest( &GenericApp_DstAddr, &GenericApp_epDesc,
GENERICAPP_CLUSTERID,
sizeof(RfPacket_t),
(byte *)&RfTx.Buf,
&GenericApp_TransID,
AF_DISCV_ROUTE, AF_DEFAULT_RADIUS ) == afStatus_SUCCESS )
{
// Successfully requested to be sent.
}
else
{
// Error occurred in request to send.
}
}
